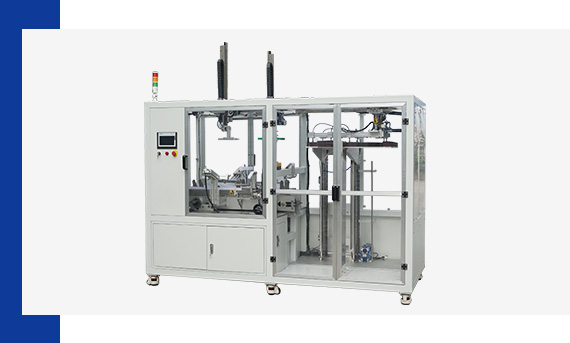

Tray Former

Tray Former
Tray Former
Model FJH Series
Machine name Tray former machine
Speed 15-22pcs/min
Corrugated paper thickness B/E/F
Cardboard thickness 300-450g
Stacking height of cardboard 850mm
Load-bearing cardboard stack 40kg
Cardboard size L:130-400mm
W:110-380mm
H:35-100mm
Noise level ≦75dB
Power 2KW
Gas consumption 20L/min
Air pressure ≥0.5Mpa
Machine weight 1400kg
(mm) Machine size 2.2-2.6(L)*1.3(W)*1.8(H)
Why Choose Us
Tray Former
Equipment Advantages
▣ Choice of hotmelt adhesive or lock form tray styles.
▣ Easy to use and adjust by operators for quick changeovers.
▣ Ergonomic loading of packaging blanks.
▣ Suitable for corrugated, solid board and folding carton trays.
▣ Reduced labor costs due to automation.
▣ Reduction in packaging costs - trays sealed with hotmelt adhesive use less material.
▣ Improvements in operational health & safety – reduced risk of repetitive strain.
▣ The flexibility of production due to quick and easy size changeovers.
▣ Large Area Using Stainless Steel,Advanced Device Appearance, Well-Made
▣ Universal Design With Simple Modifications to Fit Most Product Packaging
▣ Modular Design, Leaving Sufficient Space for Optimization and Upgrading
Recommended equipment reference cases
What Our Tray Former Can Do
Y-Pack tray forming machine can form a wide variety of tray styles, including slotted trays, trays with lids, and other custom configurations. Tray forming machinery works at high speed using strong glue systems. The machine erects trays quickly and consistently, for great results every time.
Y-Pack tray former is a self-locking tray forming packing machine controlled by a PLC system. It is widely applied in the fruit box packing, electronics industry, toys, food fashion design, car industry, and so on.

Nowadays, it is more popular applied in the E-commerce packaging industry.

With its smaller footprint design, it can be widely applied to the E-commerce packaging warehouse system. An automatic tray erecting machine can highly improve the packing speed, what’s more, it can also save labor,save money for the enterprises.

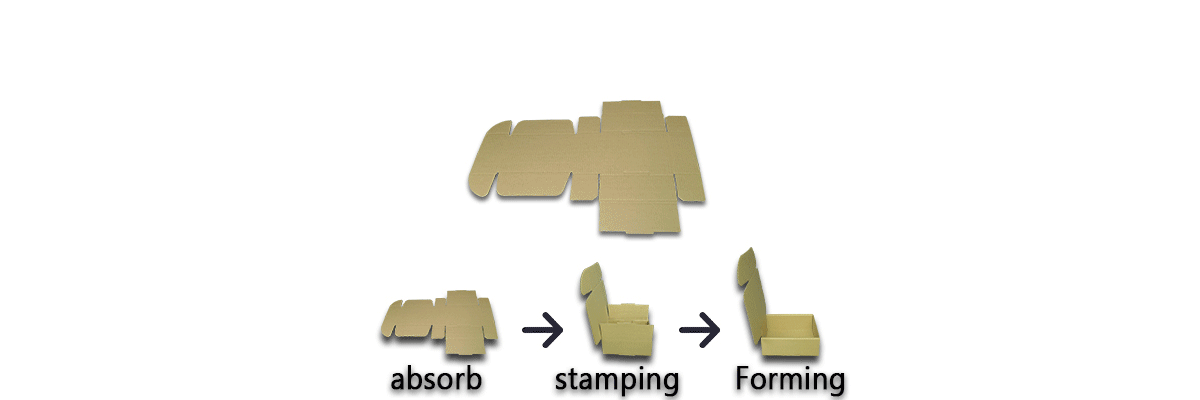

飞机盒动作动图
Multiply Automatic Tray Former For Your Choose
Our machines are suitable for most of the commonly used boxes in the market, in addition, we can also customize the folding machine for your needs.

Tray Former
Tray Former

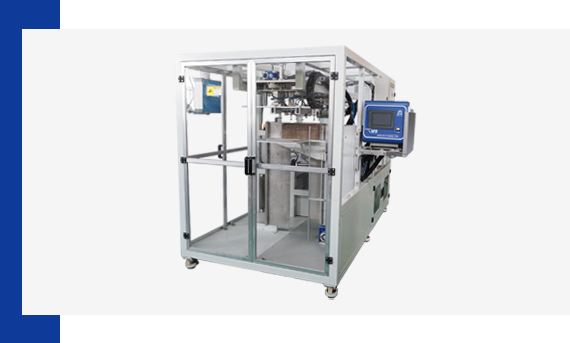

tray-former-with-glue-machine
Tray Former With Glue Machine
Tray Former For Various Product Packaging
Y-Pack tray former machines mainly suitable for B/E/F corrugated paper and 300-450g whiteboard paper and other packaging materials of paper boxes. Widely used in such, Digital products, cosmetics, knitted products, baked goods, toys, fruits, daily necessities, pharmaceuticals, and other industries of medium and high-grade carton packaging.

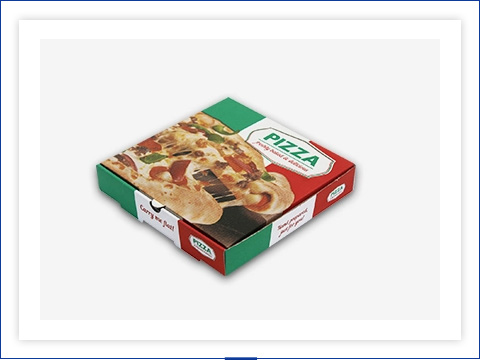

food
Food

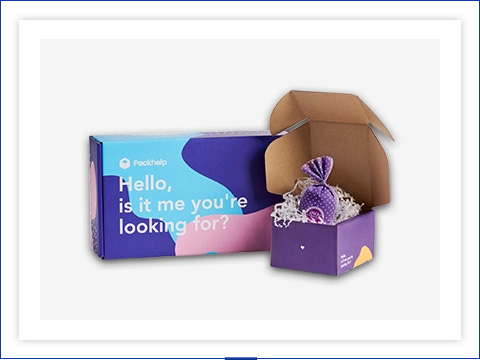

Gifts
Gifts

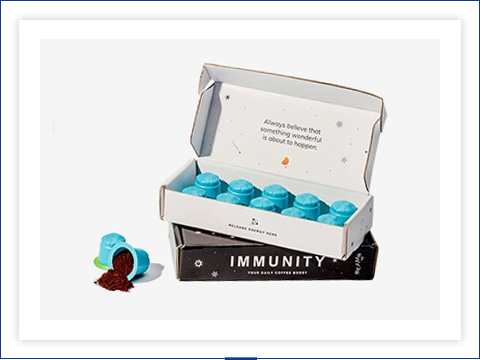

coffee
Coffee

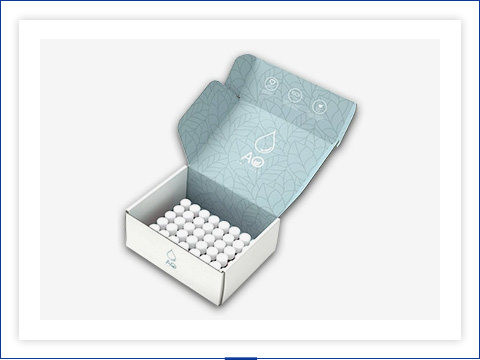

Mailer box
Mailer Box

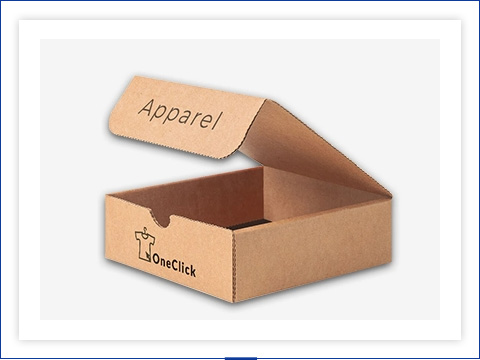

Clothes
Clothes

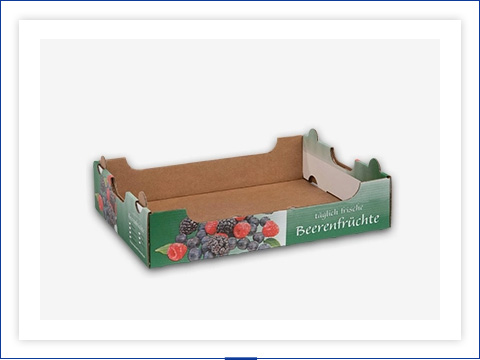

Fruits
Fruits

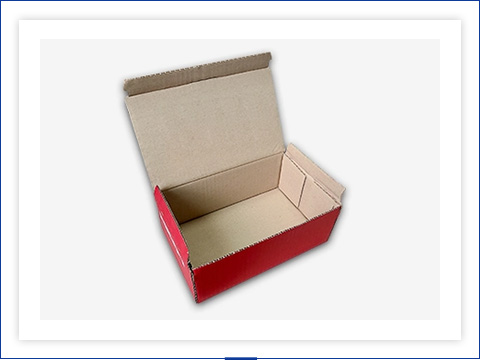

Glue Spraying Cover
Glue Spraying Cover

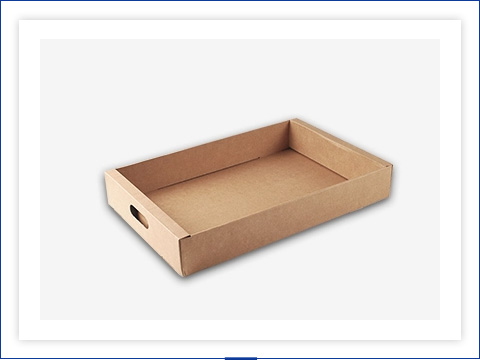

Folding cover
Folding Cover

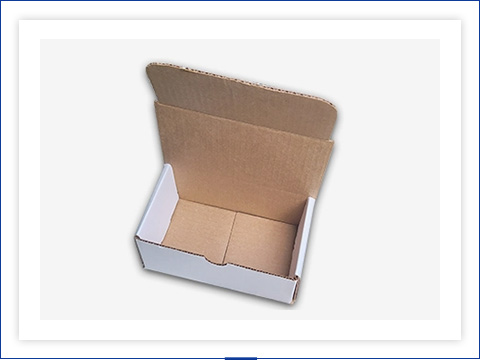

Reinforcedload-bearing Box
Reinforcedload-bearing Box
Product Details
Certifications
We are trustworthy factory.
ｉｓｏ
CE
SGS
CE
zs-3
zs-4
zs-5
zs-6
Production Process
流程
Real user feedback
Real user feedback
FAQ

  • Q How can I be sure to get assurance after payment?

    A
    In China, there is anti-money laundry policy, for which the government strictly manages every payment from abroad. The payment you made will firstly go to their managing account,and only when we submit bill of loading to them, payment will be released to us;
    the payment will be returned to you or pended by State Administration of Foreign Exchange,SAFE. if we are not able to make shipment and submit bill of lading within lead time.


  • Q When can i expect my email or questions to be replied?

    A Our working time is 9:00am--18:00pm Monday--Saturday, any email shall be replied within 24 hours normally.
    For an enquiry, the most recommended way of contact is by email, by sending your final product&photos to our email,due to our possible time difference.

  • Q How many years warranty and how do I do the machine repairing & maintenance?

    A
    One-year warranty from the date of shipment, during which if any parts fault, we will courier to your replacing parts with replacing instructions, all at our cost.
    The replacing is simple and easy to be completed by anybody.
    The machines are maintenance free types, some daily lubrication will prolong the service life though.


  • Q Will you send technical staff to help me with installation and operation training?

    A The machine will be packed with little disassembly in one plywood crate, so they will be plug and use type, no need special installation.
    We will also send you installation and operating tutorial videos before shipment.Remote assistance by video call or meeting is available as well.
    In rare cases, we can send technical staff if desperately needed, but there is 150USD/day engineer salary and flight ticket, visa application, travelling, board and lodging shall be at buyer's account.

  • Q How can I be sure the machine will absolutely work for my product?

    A We will test run the machine once the building completes for 10 minutes, with your sample product ( when sample product is a must) and send you test run video to prove the machine works well and stable, for your product, before balance payment and shipment.
