Automatic Cookie/snack And Chocolate Pie Sorting And Cartoning Packaging Line

Customized automatic cookie/snack and chocolate pie sorting and cartoning packaging line. The layout is designed according to the actual production workshop.

The incoming conveyor belt is directly connected to the cookie production line, and the cookies will be transported to the cookie sorting machine station; the customized sorting machine can arrange the cookies into a row of two layers; at the collating station, the arranged cookies will be further leveled to ensure smooth cratoning; at the next station, the material detection probe, after detecting the cookies, the cartoning machine will automatically open the box and push the cookies into the box, and the hot melt glue cartoning machine will seal the box by hot melt glue. The box will continue to pass through the coding station, and the coding machine will spray the production date code on the passing box. The finished product is then ready to be sent to the supermarket shelves.

According to the customer's requirements, we have manufactured two cartoning and packaging lines at one time. If there is further packaging demand, we can also customize the casing and palletizing line at the back end of this packaging line to realize the automation of the whole process from production to packing and transportation of products.

Y-pack packaging technology Co., Ltd. can customize the automatic packaging line according to your requirements, you are welcome to contact us with your needs.
Availability:
Quantity:
  • Y-Pack


Automatic Cookie/snack And Chocolate Pie Sorting And Cartoning Packaging Line


Automatic Cookies Cartoning Packing Line Front Side


Case reference information

Material Information

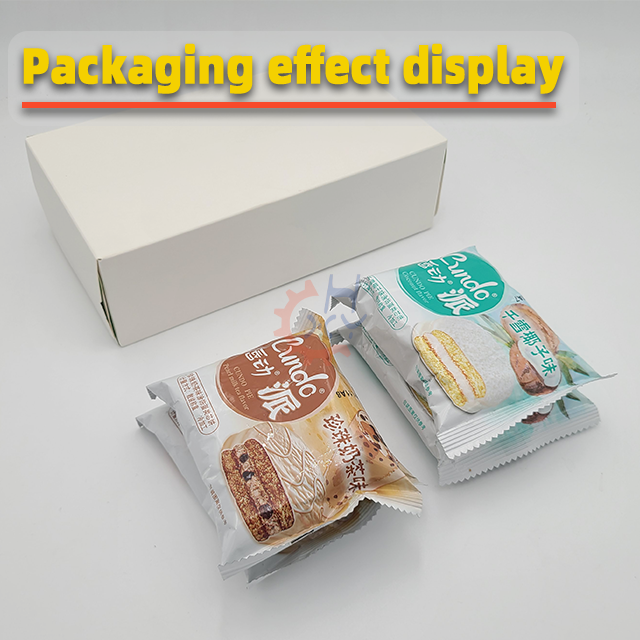

box L200*W115*H60mm   4 packs/box
Main Technical Parameter
Speed

Carton package part:35 box/min

Gas source ≥0.6MPa
Total power 4.5KW (cartoning machine 1.3kw, hot melt glue machine 2kw, sorting machine 1.2kw)



Inquire about the selling price of this case

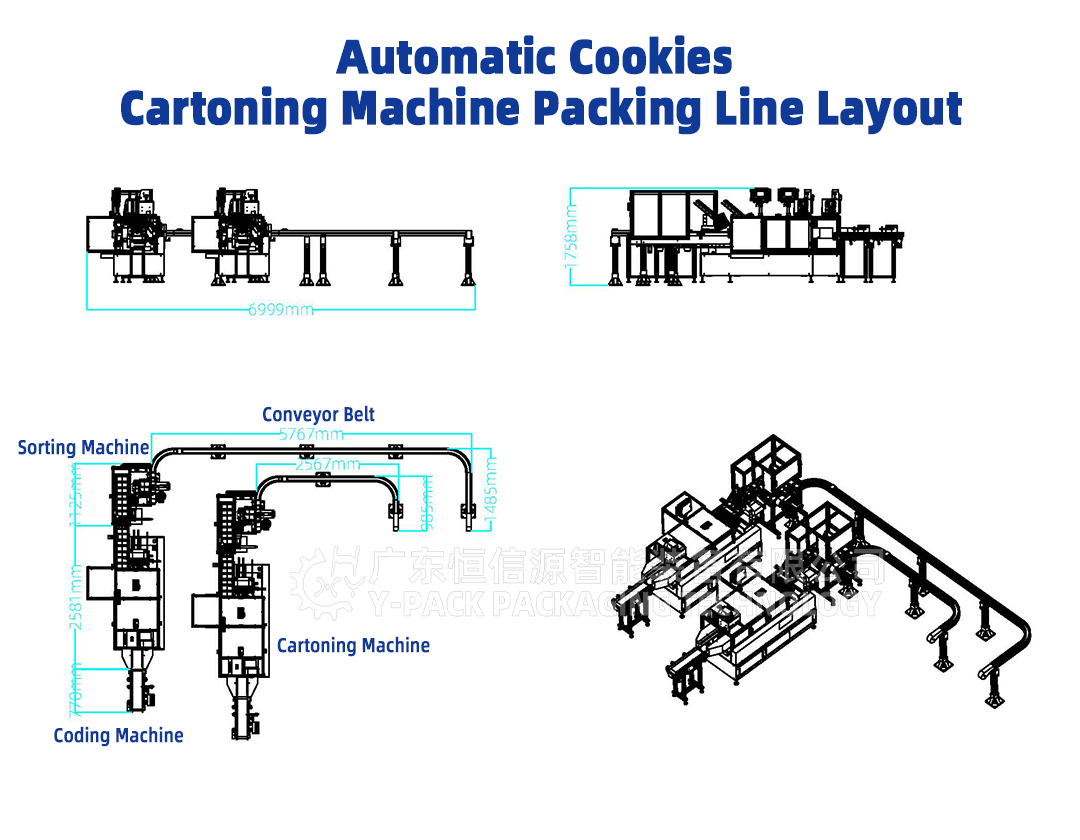

Automatic Cookies Cartoning Packing Line Layout

Automatic Cookie/snack And Chocolate Pie Sorting And Cartoning Packaging Line

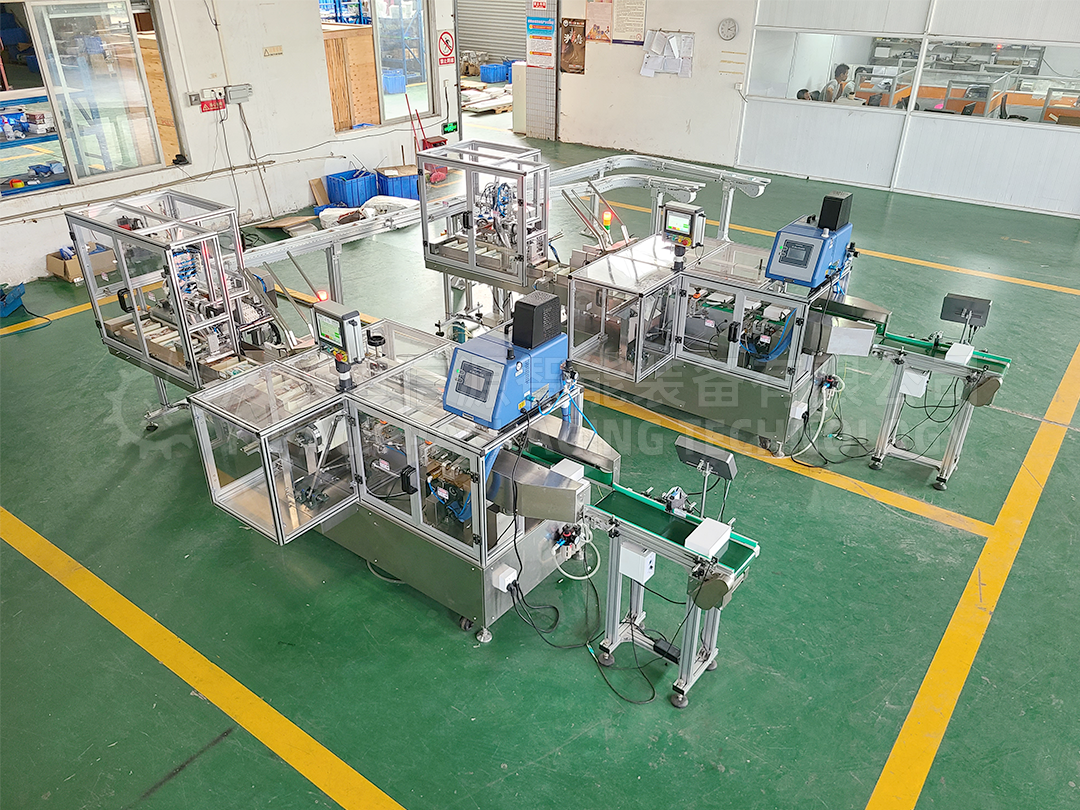

Automatic Cookies Cartoning Packing Line

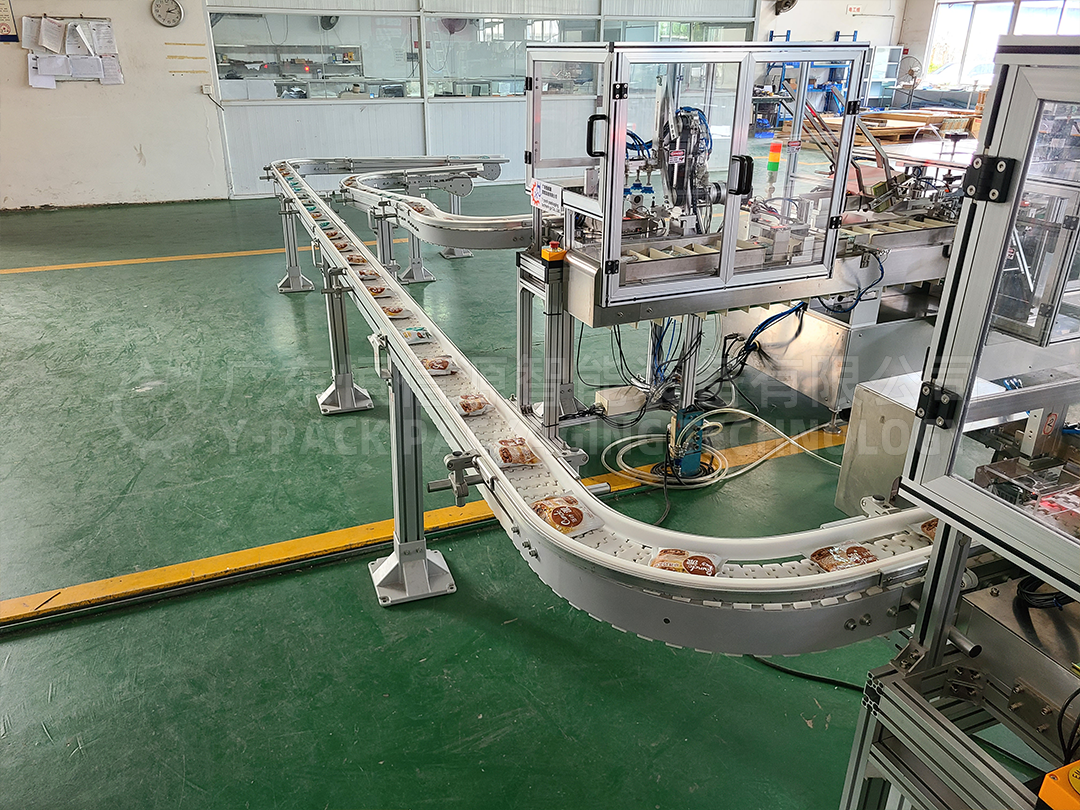

Conveyor Belt

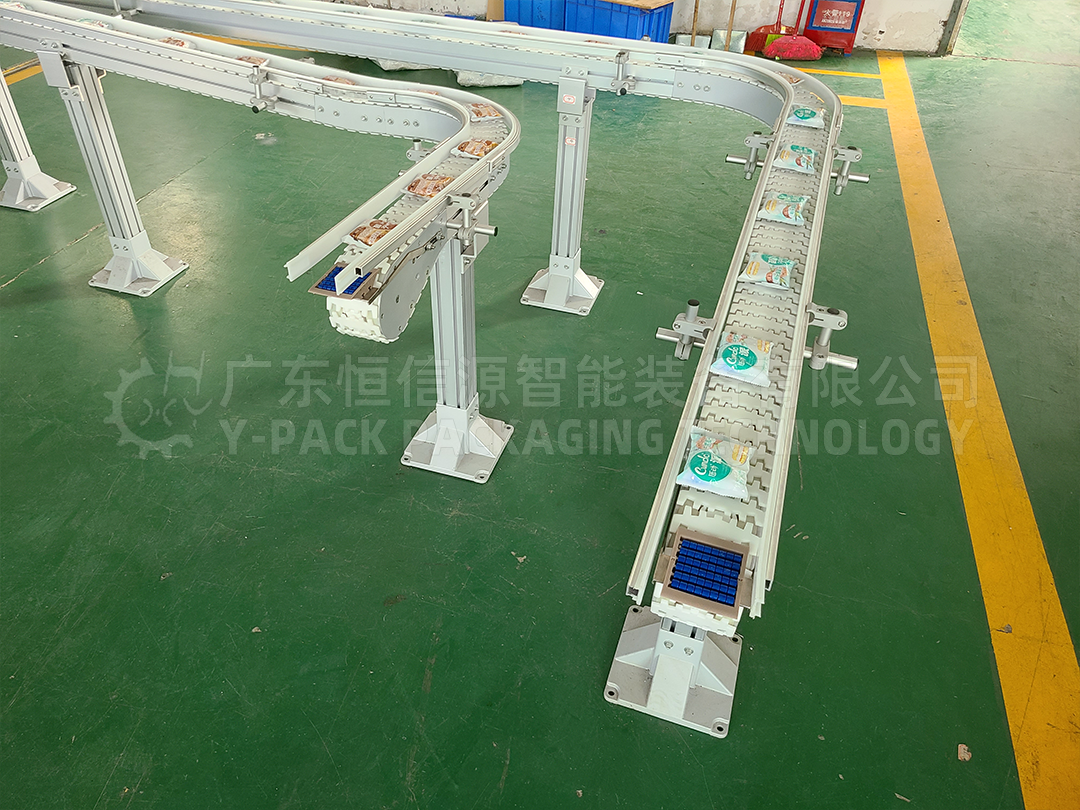

Conveyor Belt Docking PortConveyor Belt

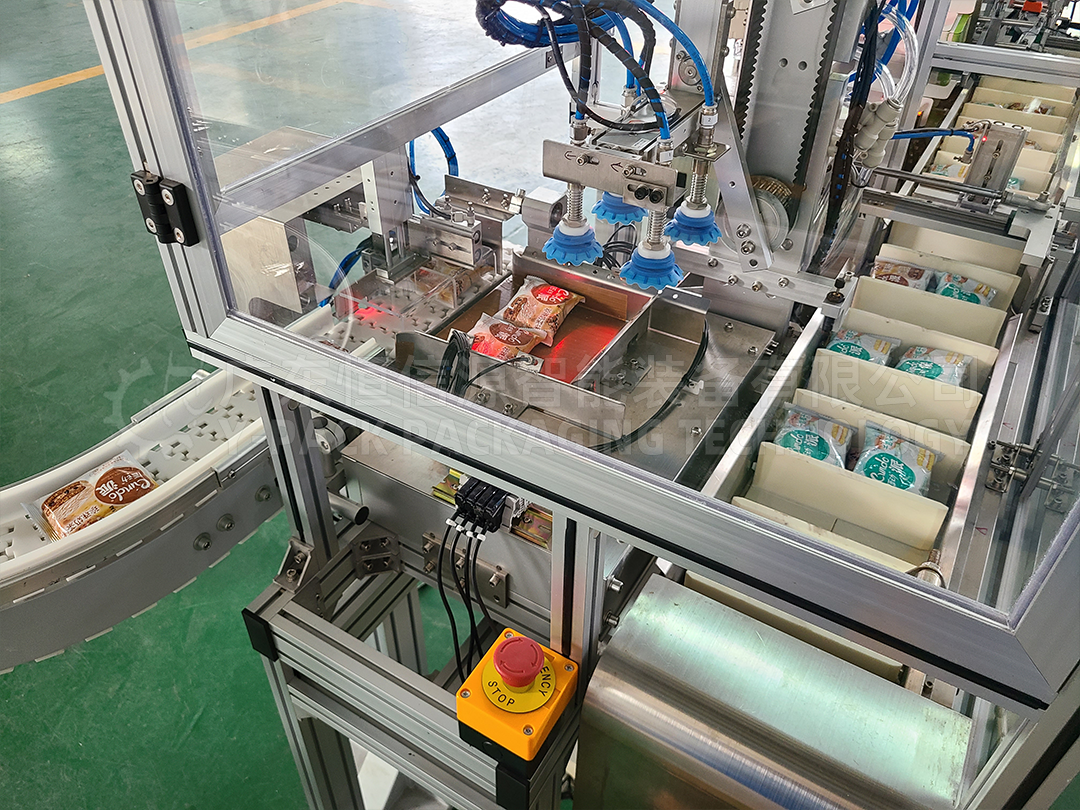

Sorting Machine

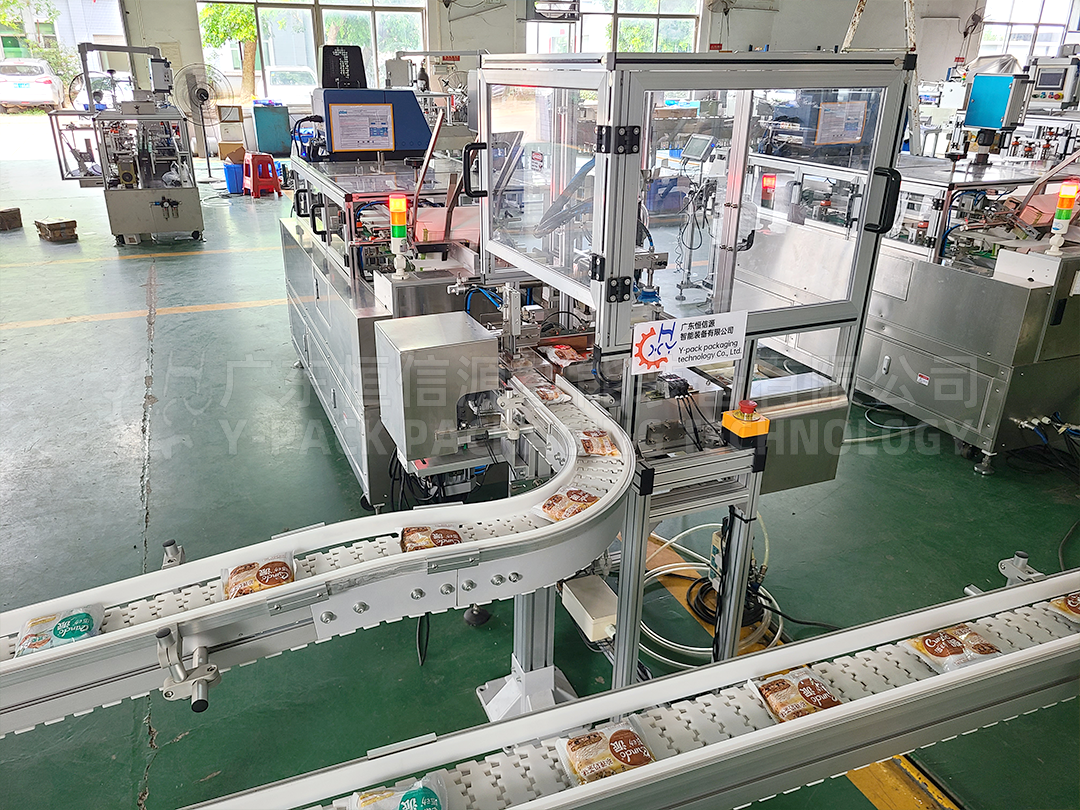

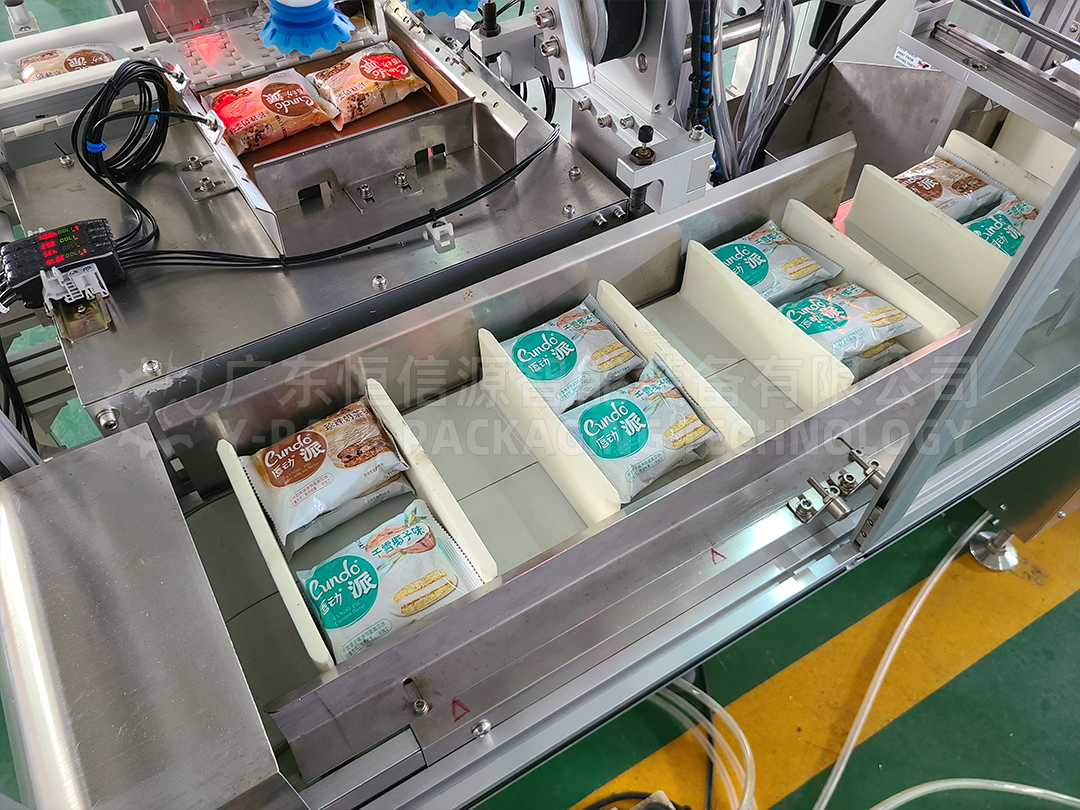

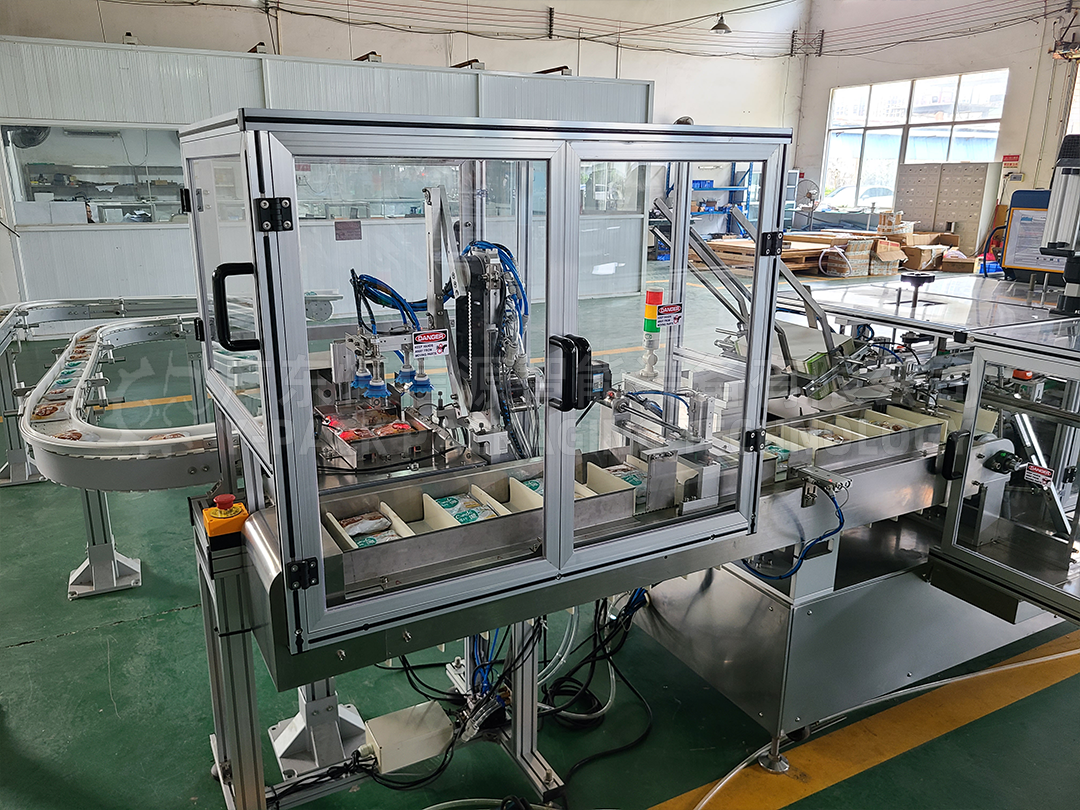

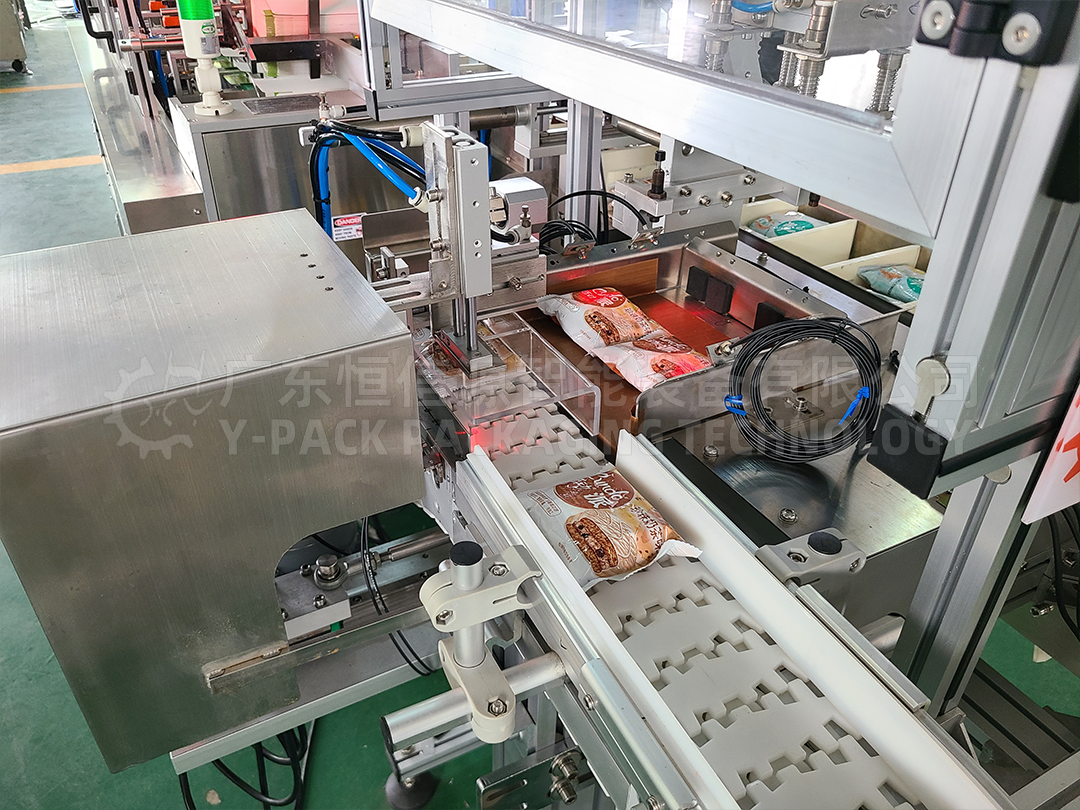

Sorting PartRobotCookies Sorting MachineCookies Conveyor BeltProtective Door For Sorting Machine


Collating Mechanism

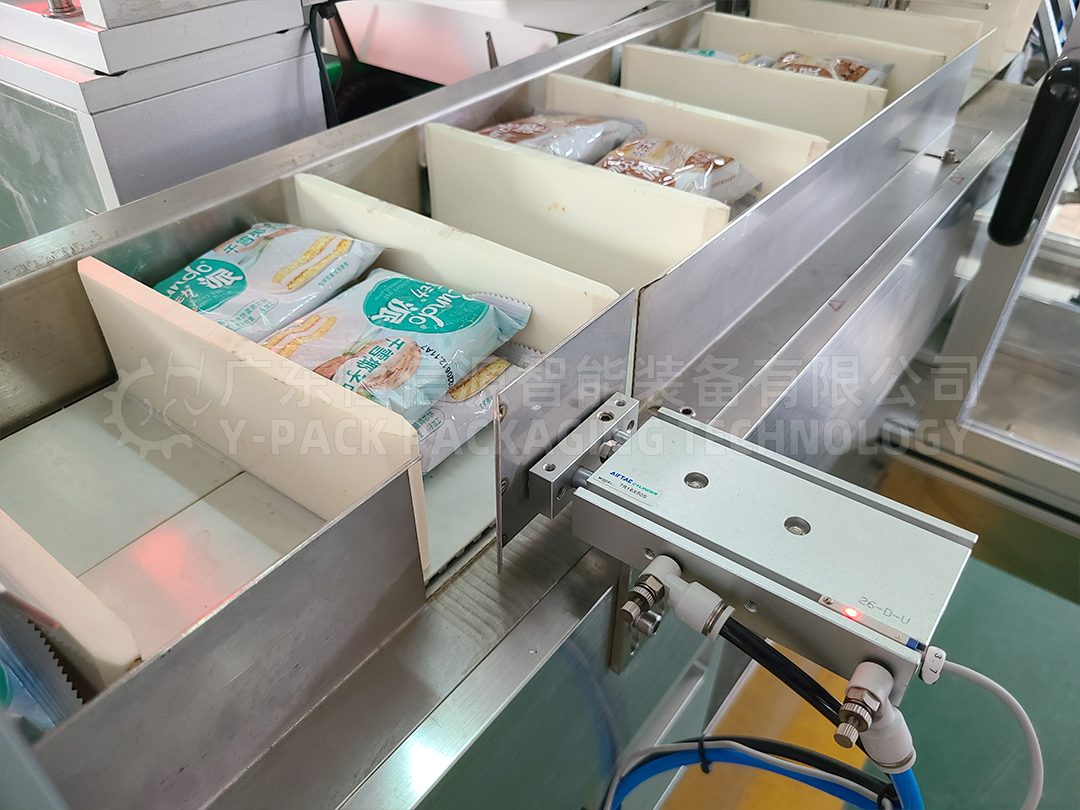

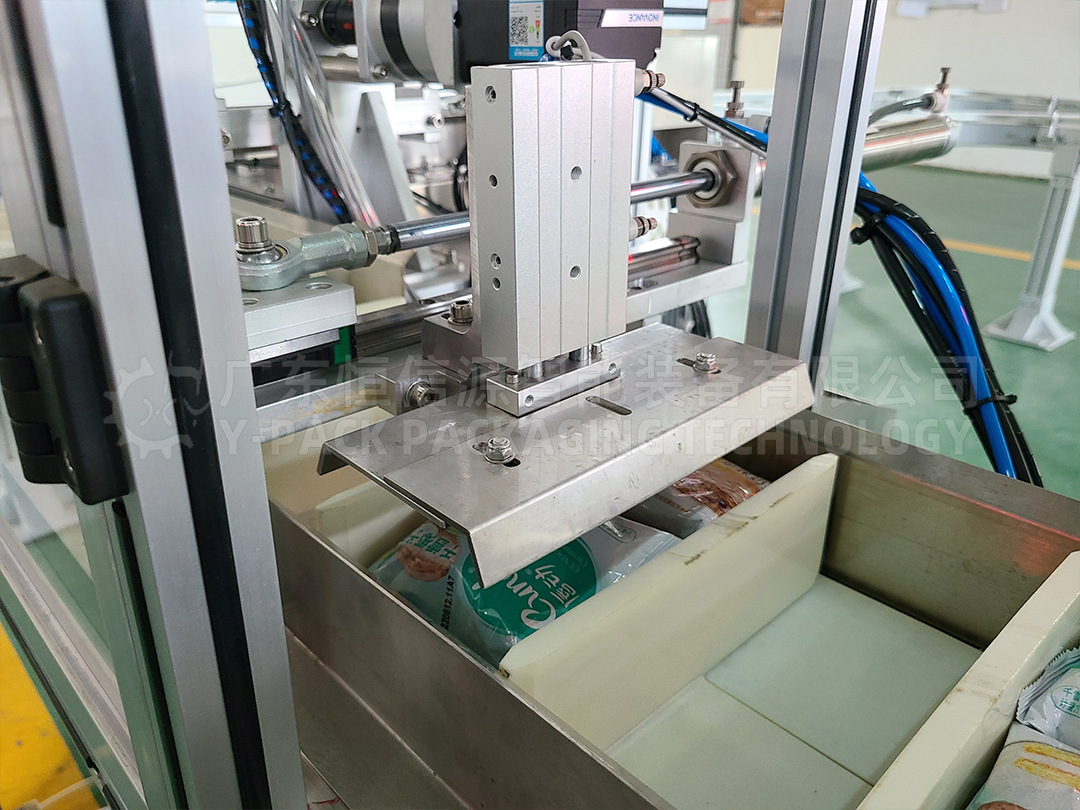

Smoothing Mechanism 1Smoothing Mechanism 2

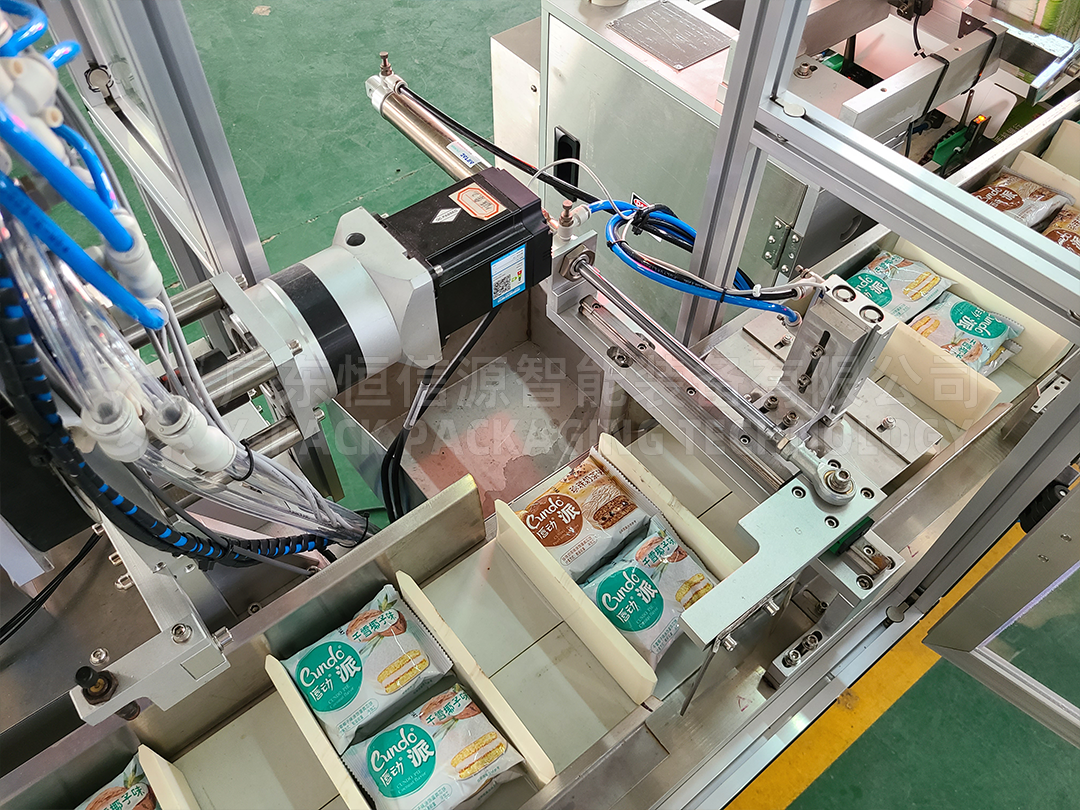

Rejecting Organizations

Rejecting Organizations


Cartoning Machine

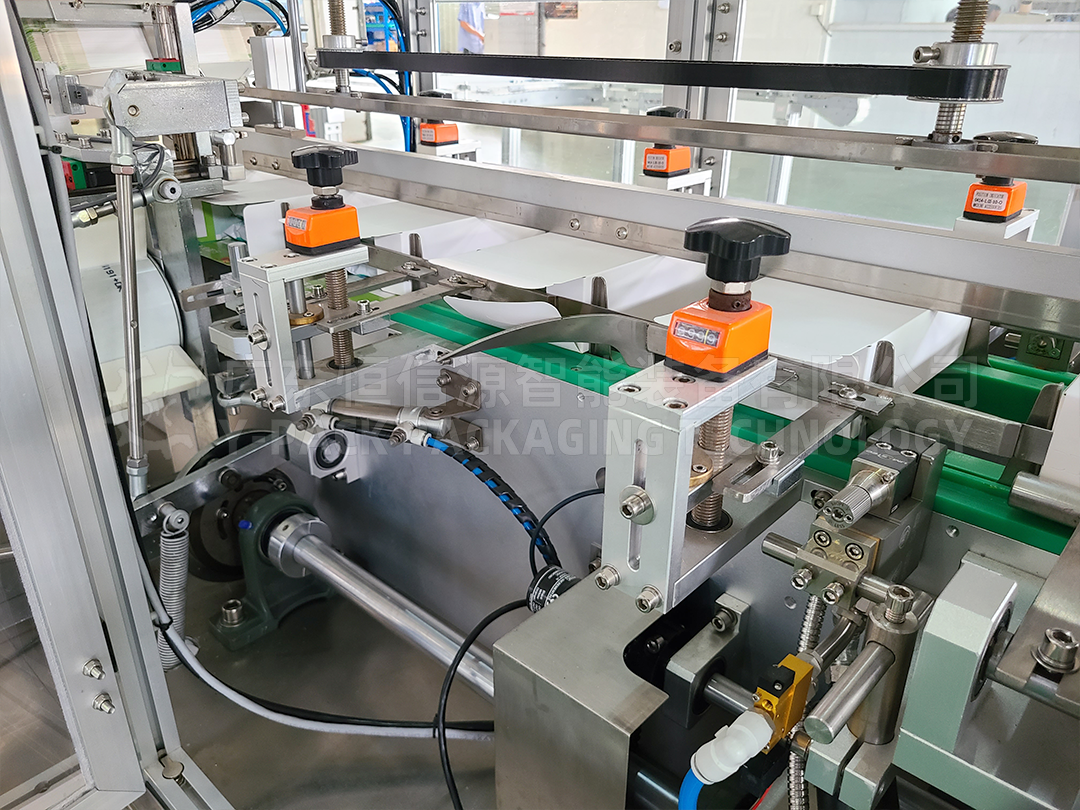

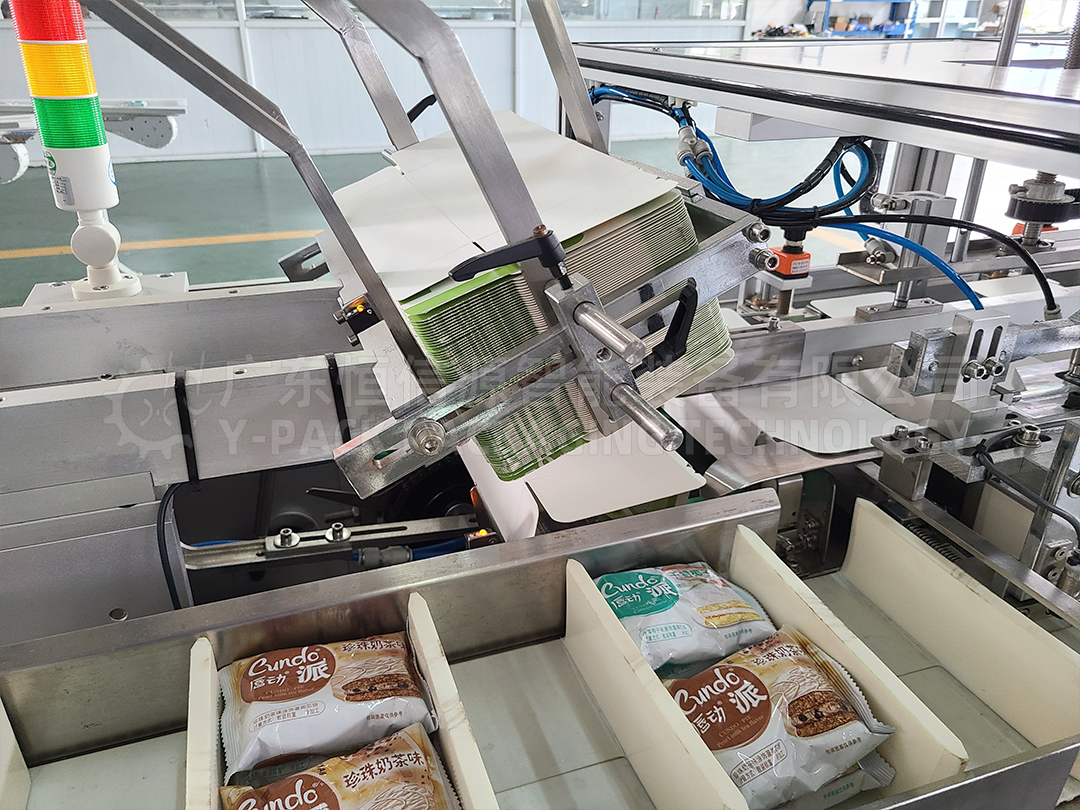

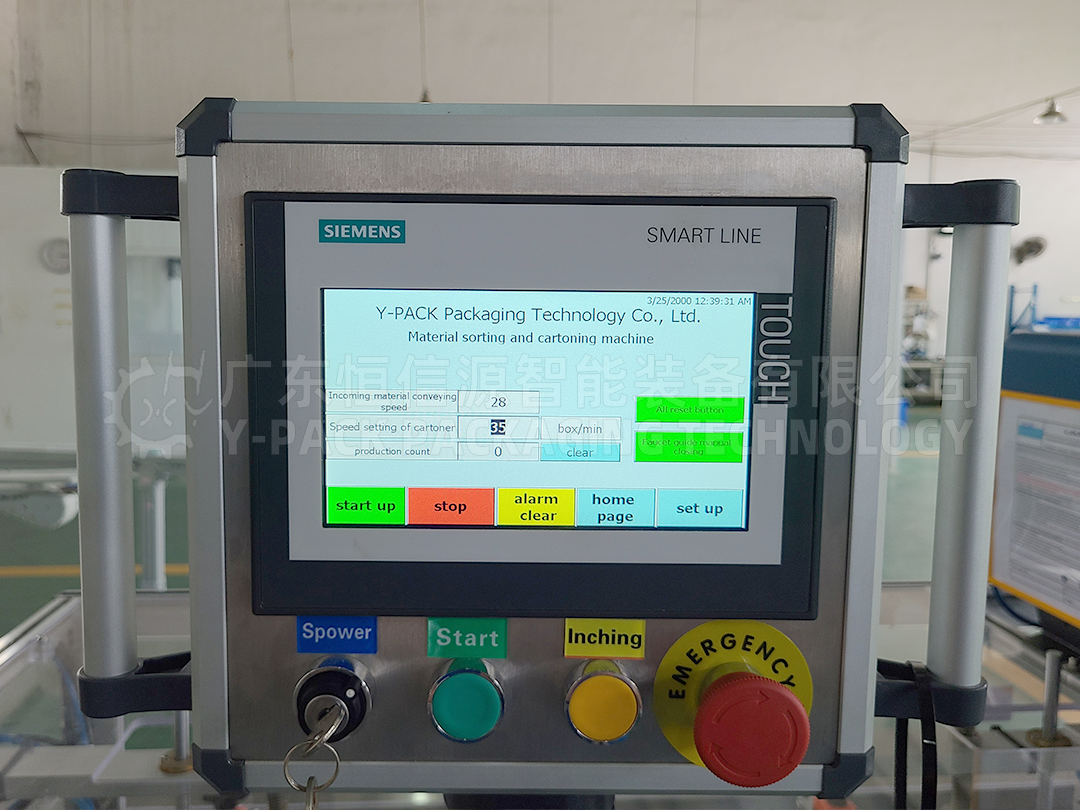

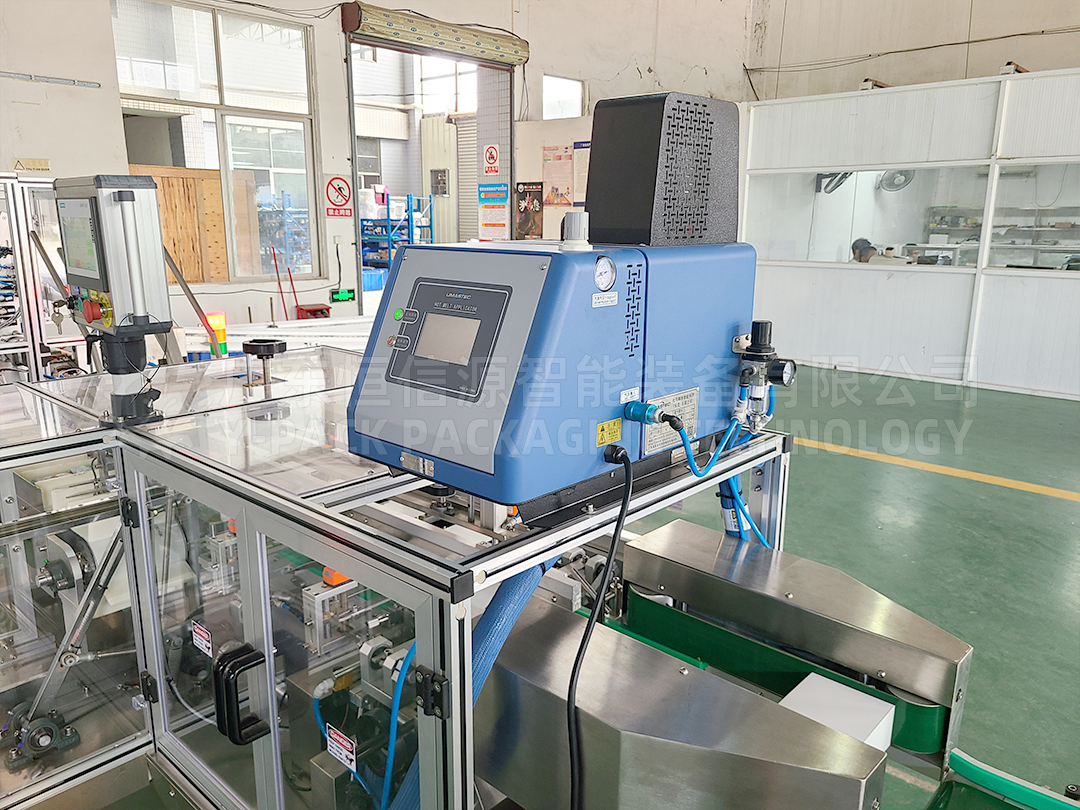

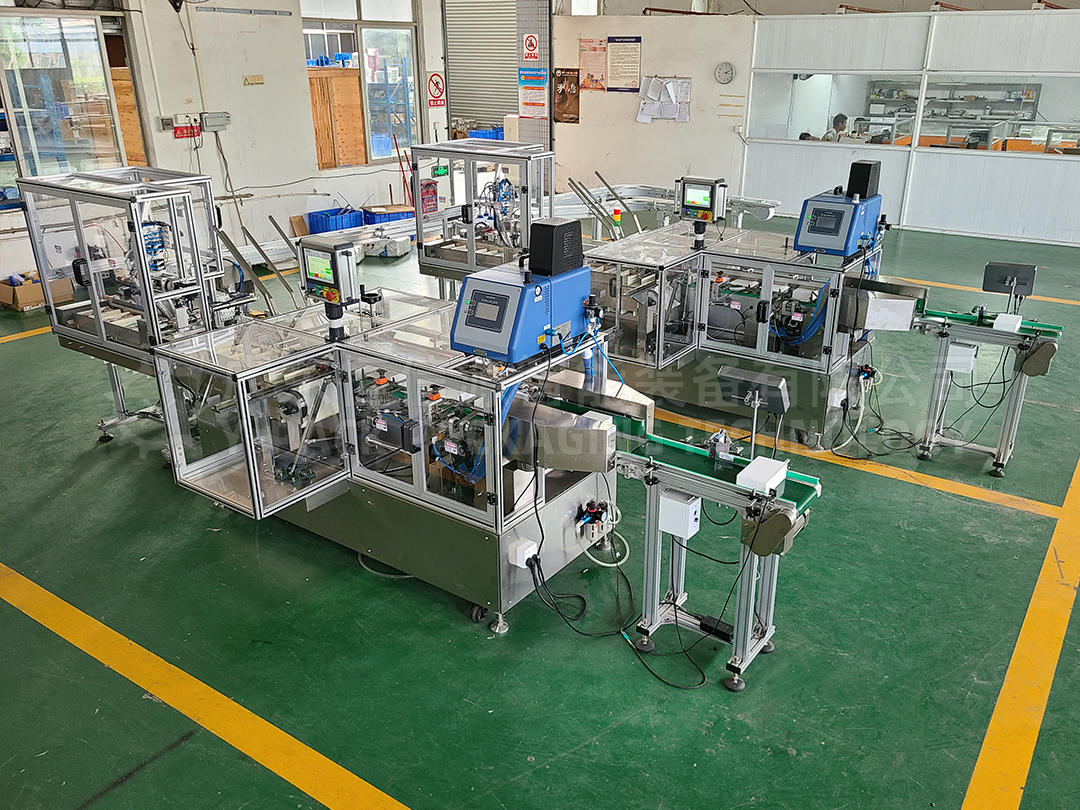

Automatic Cookies Cartoning PartBox Erecting and CartoningCarton Box FormingControl PanelHot Melt Glue Machine

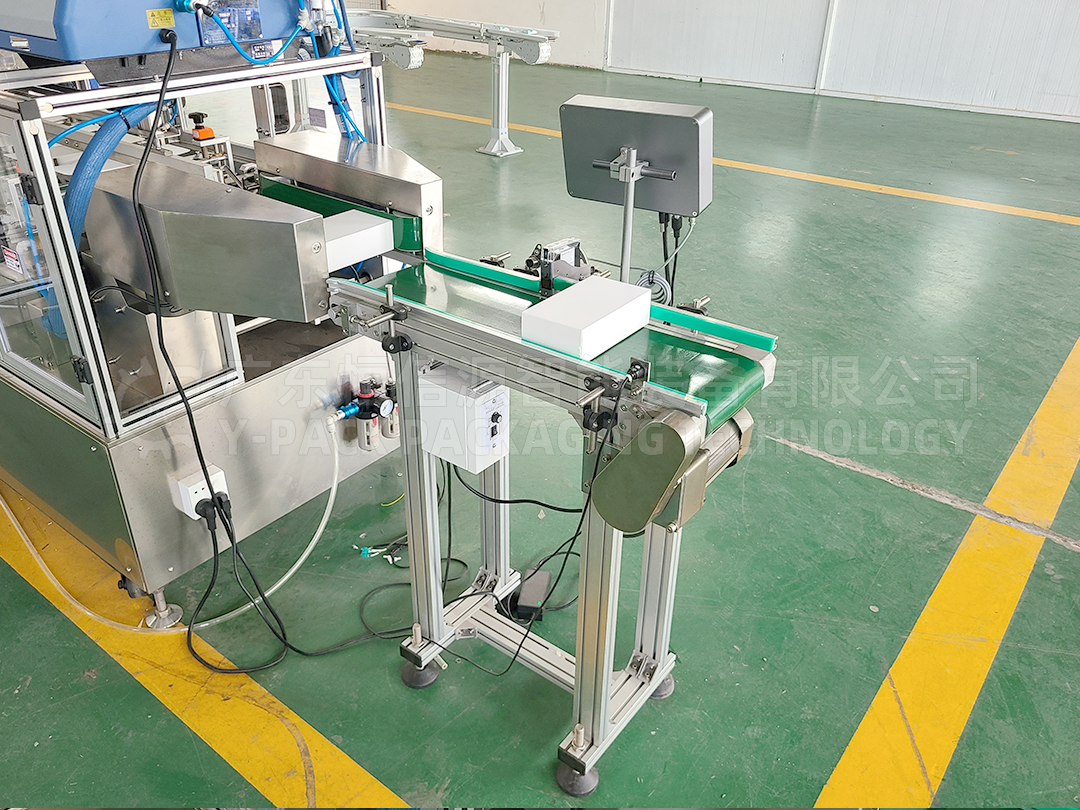

Coding Machine

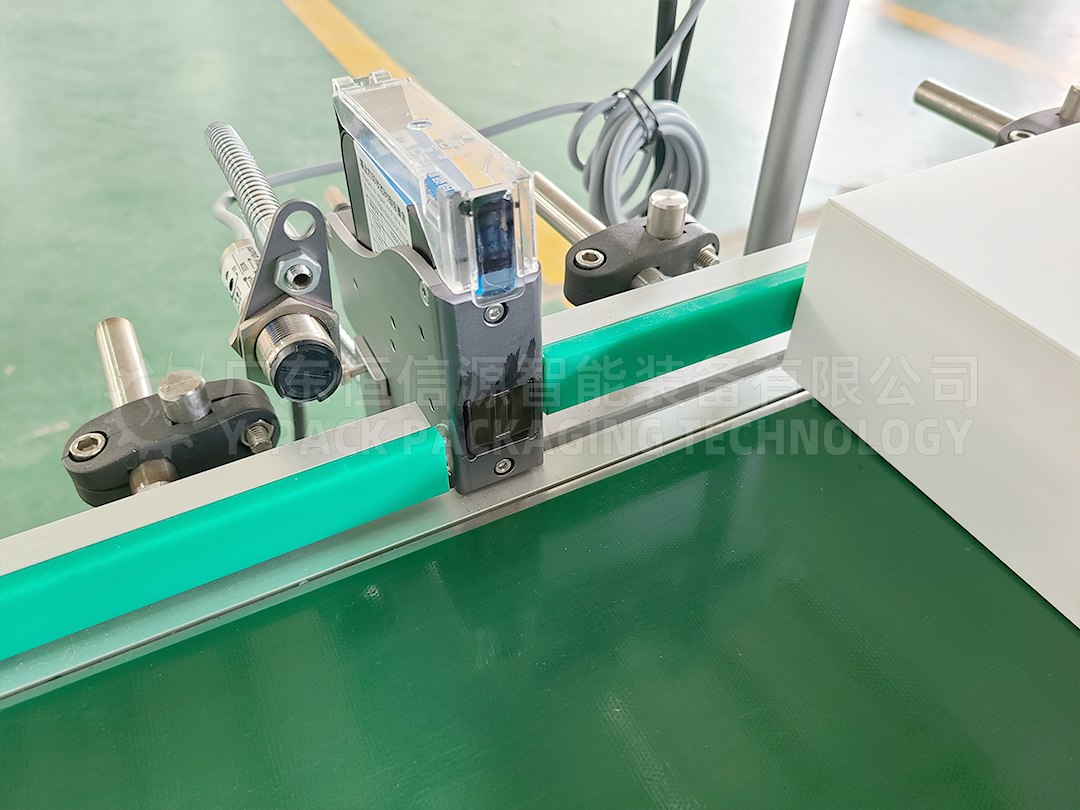

Coding MachineCoding
